RAID 6 Data Recovery, RAID 60 Data Recovery Service
RAID 6 is a further development of data warehousing technology designed for less reliable but higher-capacity, cheaper desktop-class hard drives.In RAID 6, data is striped across multiple physical drives, and dual parity is used to store and recover data. It can tolerate the failure of two drives in the array, providing better fault tolerance than RAID 5. It also allows the use of more cost-effective but less reliable ATA and SATA disks for storing mission-critical data.
Whether it's a RAID 6 logical disk failure or severe physical drive damage, FixmyData can help. We utilize advanced innovative technology, proprietary equipment, and software to recover your RAID 6 quickly and efficiently while maintaining data integrity. With numerous successful RAID 6 recovery cases, we have dealt with almost every possible RAID 6 failure scenario.

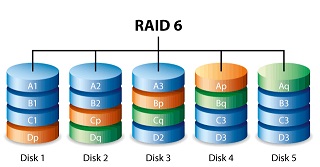

This RAID 6 level is similar to RAID 5 but includes a second parity scheme distributed across different drives, thus providing extremely high fault tolerance and drive failure tolerance. RAID 6 can withstand a two-disk failure.
RAID 6 requires a minimum of four disks and can be implemented with up to 16 disks. The usable capacity is always two less than the number of available disk drives in the RAID set.
Using cheaper but less reliable SATA disk drives in configurations employing RAID 6 can achieve higher availability than Fibre Channel arrays using RAID 5. This is because the second parity drive in a RAID 6 RAID set can withstand a second failure during rebuild. In a RAID 5 set, the time during degraded operation and/or rebuilding onto a hot spare is considered the window when the RAID array is most vulnerable to data loss. During this period, if a second disk fails, the data becomes unrecoverable. With RAID 6, there is no such vulnerable window, as the second parity drive protects against this.
RAID 60 combines multiple RAID 6 sets with RAID 0 (striping). The dual parity allows two disks to fail in each RAID 6 array. Striping helps increase capacity and performance without adding disks to each RAID 6 array (which would reduce data availability and potentially impact performance in degraded mode).
RAID 60 involves RAID 0 striping across the underlying RAID 6 arrays. While gaining the advantages of RAID 6, the RAID 0 across the spans allows for more disks to be consolidated into a single logical drive. Up to two drives can fail in each sub-array without data loss. Moreover, rebuild times are significantly less than with a single large RAID 6 array containing the same number of physical drives.
RAID manufacturers differ greatly in the internal components and circuit design of their hardware. In-depth understanding of these designs is crucial for successful data recovery. However, as manufacturers do not disclose this information, RAID recovery techniques require years of development and reverse engineering to determine which are most effective.
Our RAID Data Recovery Process Meets Manufacturer Specifications.
We Can Recover Data from Hard Drive RAID Arrays Produced by the Following (but not limited to) Manufacturers:
